Manhattan’s largest puzzle parking system

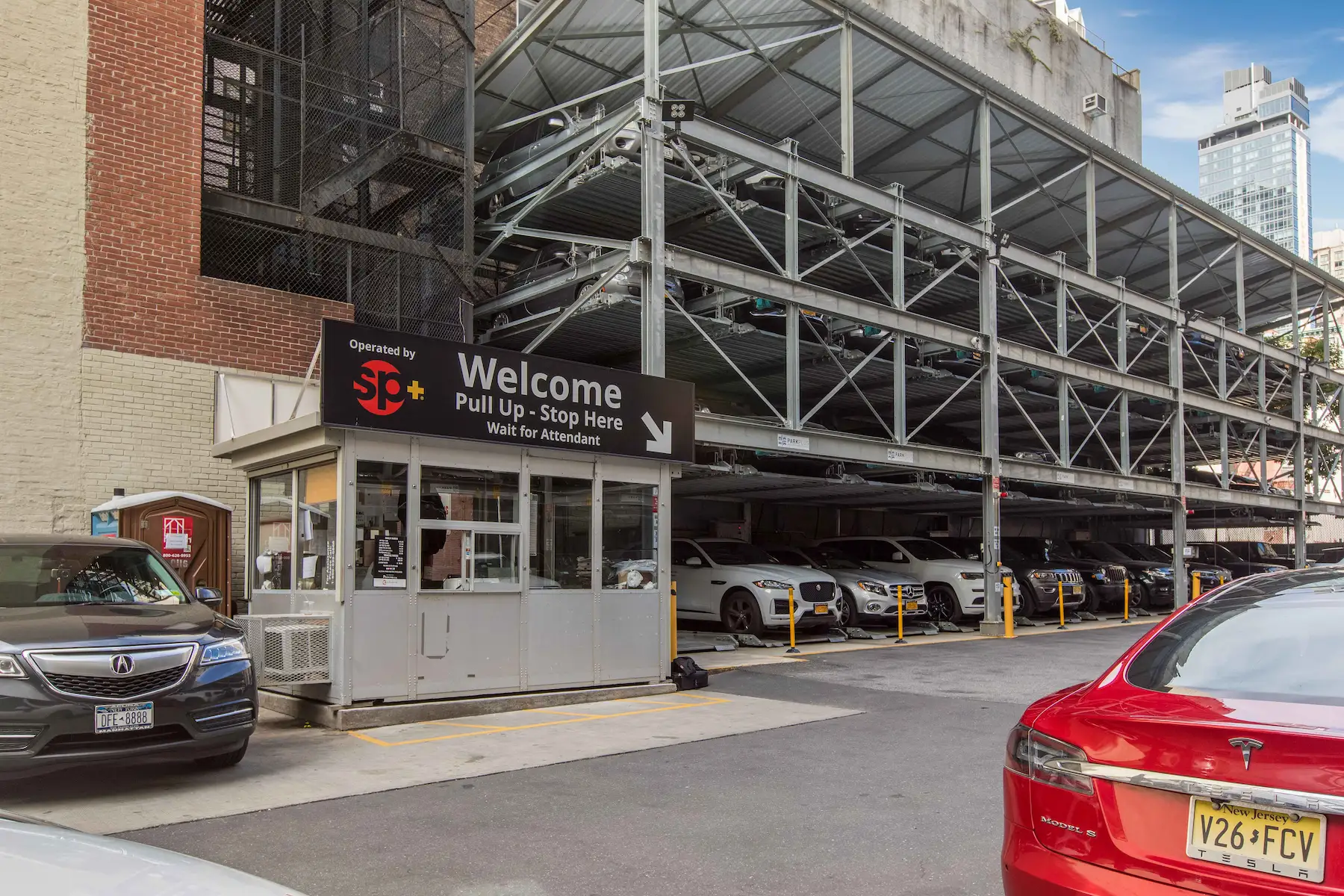

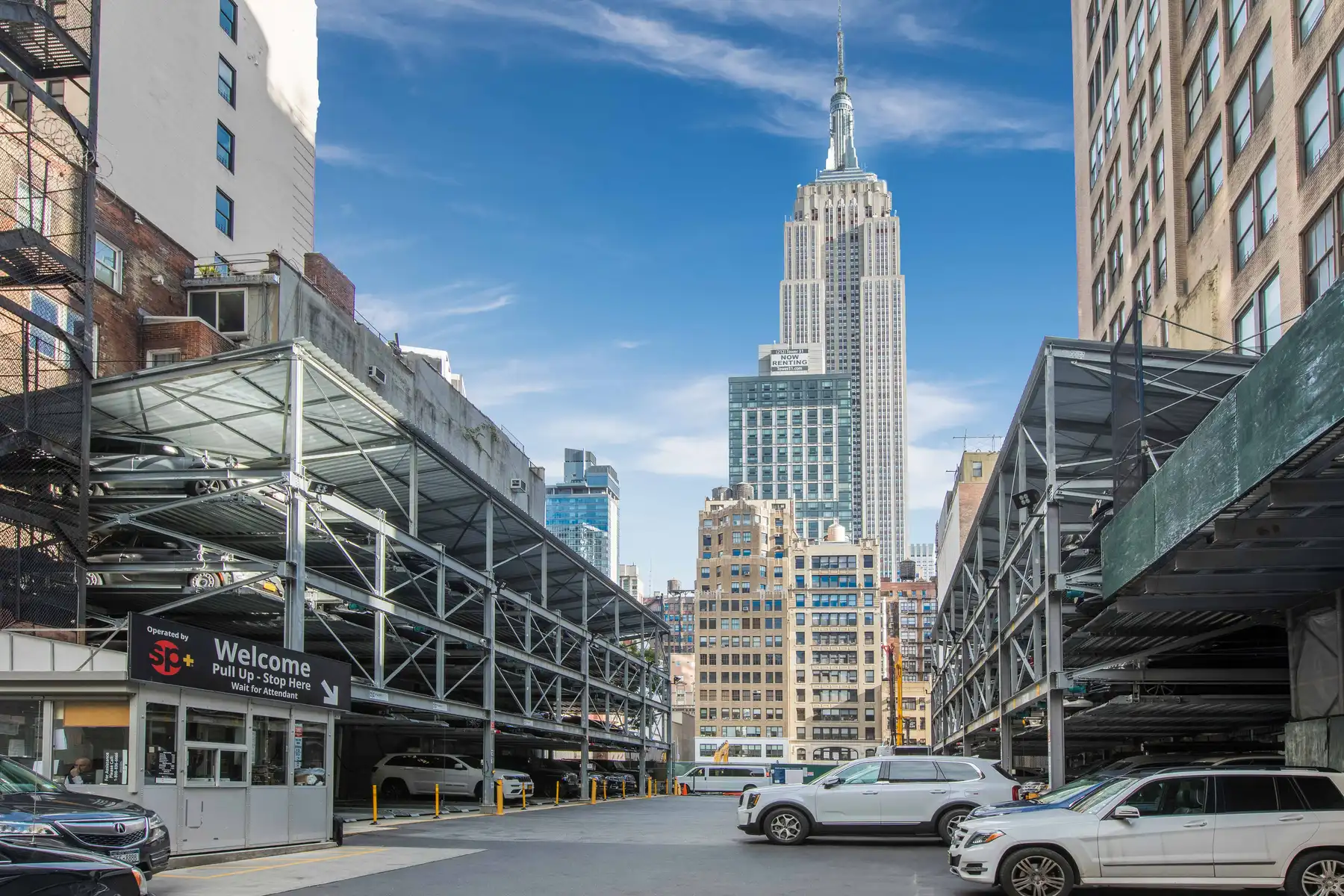

The valet parking facility at 11 W 28th Street sits in one of Manhattan’s most space-constrained blocks, where demand for parking consistently outpaces available ground. ParkPlus was brought in to maximize the site’s parking capacity without expanding the lot’s footprint. The solution was a 4-High Lift-Slide Puzzle Parking System configured as two separate modules — one on each side of the lot — delivering 82 spaces on a surface that would otherwise handle a fraction of that number.
The installation is the largest system of its kind in Manhattan. Running at four levels, each module operates independently, allowing simultaneous retrieval from both sides of the lot — a configuration that suits the high-throughput demands of an active valet operation in lower Midtown. The system completed in 2015 and has been operating under SP+ management since.
SP+ is one of the largest parking operators in North America, managing thousands of facilities across the US and Canada. The 11 W 28th Street location is one of many SP+ valet operations in New York City where ParkPlus mechanical systems have been deployed to maximize revenue per square foot in a constrained urban environment.
Multiplied capacity on a fixed Manhattan footprint
In lower Midtown Manhattan, parking real estate is among the most expensive in the country. A surface lot that might hold 20 cars at grade becomes an 82-space income-producing asset with a Lift-Slide system. That capacity multiplication is what makes mechanical parking commercially viable in this market — the same land generates far more revenue per square foot.

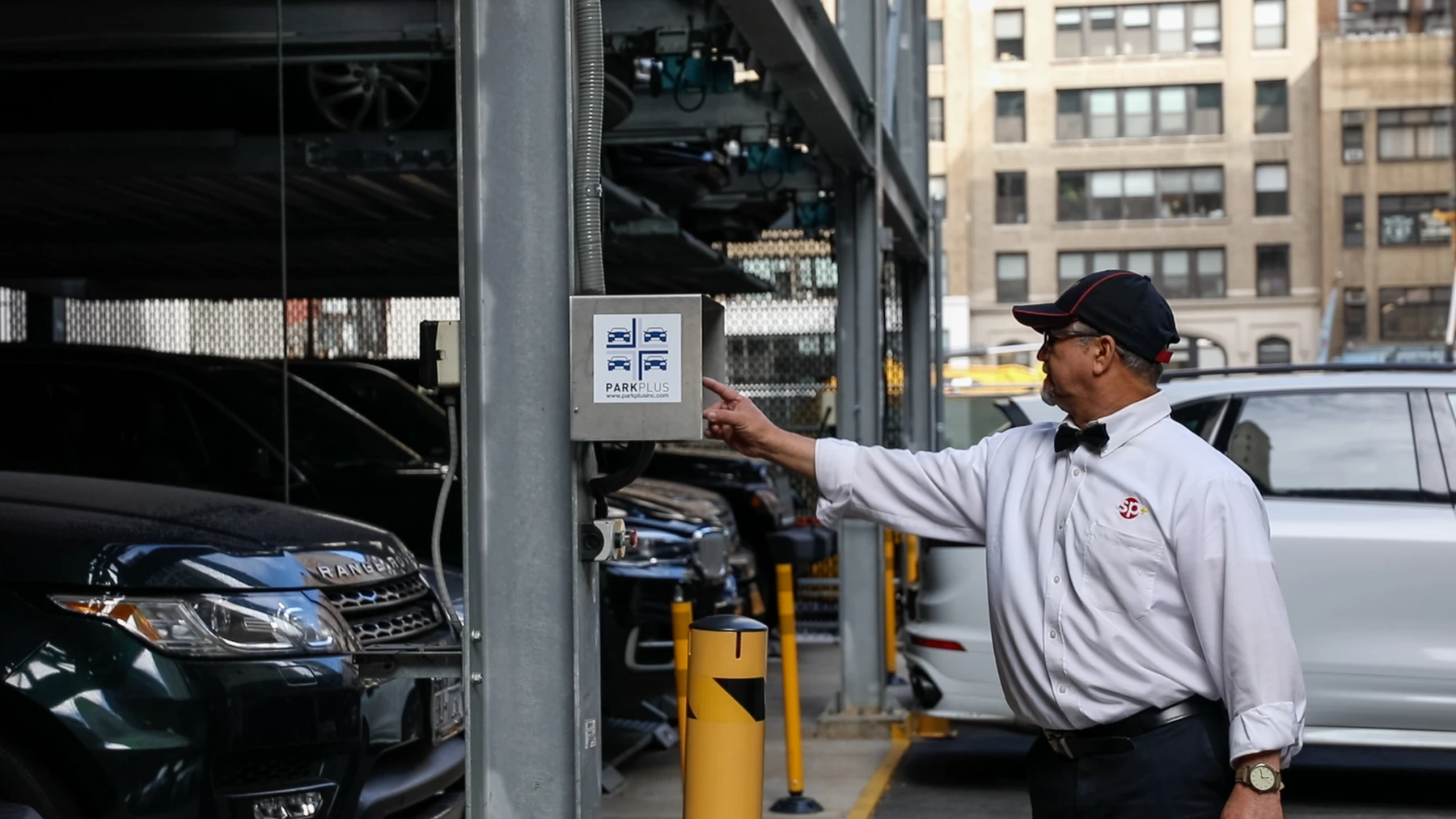

The dual-module configuration also keeps the operation running efficiently at peak demand. With two independent modules serving opposite sides of the lot, valet staff can retrieve multiple vehicles simultaneously, reducing wait times during high-volume periods without requiring additional land or attendants.
Capacity comparison based on installed system configuration versus typical surface lot yield for this footprint type.
Project Photos

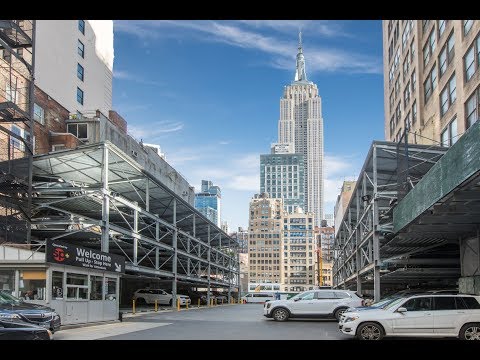

See It in Action
Urban density, fixed footprint, high throughput demand
A surface parking lot in lower Midtown Manhattan has almost no room to grow horizontally. Land constraints are absolute, and the economics of the site demand that every square foot work as hard as possible. For a busy valet operation, that pressure is compounded by throughput: the system has to move vehicles in and out quickly enough to serve demand during peak hours without creating a backlog at the attendant booth.
A conventional low-density surface layout simply could not generate the revenue the site required. The operator needed significantly more spaces without any additional land — and the system needed to be fast enough to keep pace with a working valet queue.

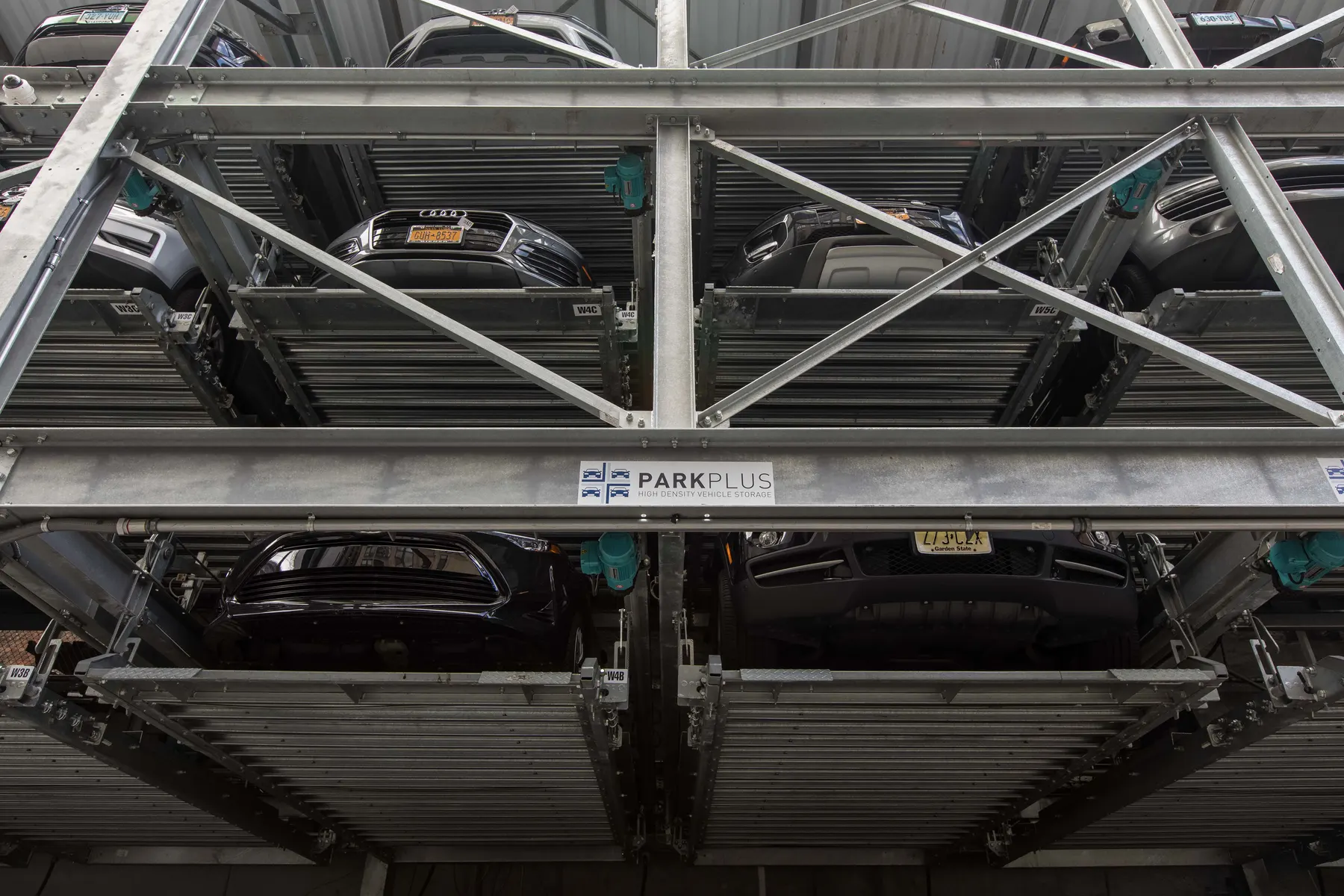

Dual-module 4-High configuration for independent operation
ParkPlus designed a two-module 4-High Lift-Slide system that runs one module on each side of the existing lot. Each module operates independently, so vehicles can be retrieved from both sides simultaneously — a key operational advantage for a live valet environment where multiple cars may be requested at once. Together the two modules deliver 82 spaces across four levels, making it the largest installation of its kind in Manhattan.
The Lift-Slide system’s compact footprint and low equipment profile made it the right fit for the site geometry. The 2015 installation has operated continuously in a high-demand valet context since completion.
System Specifications
Common questions about Lift-Slide puzzle parking
How does a Lift-Slide puzzle parking system work?

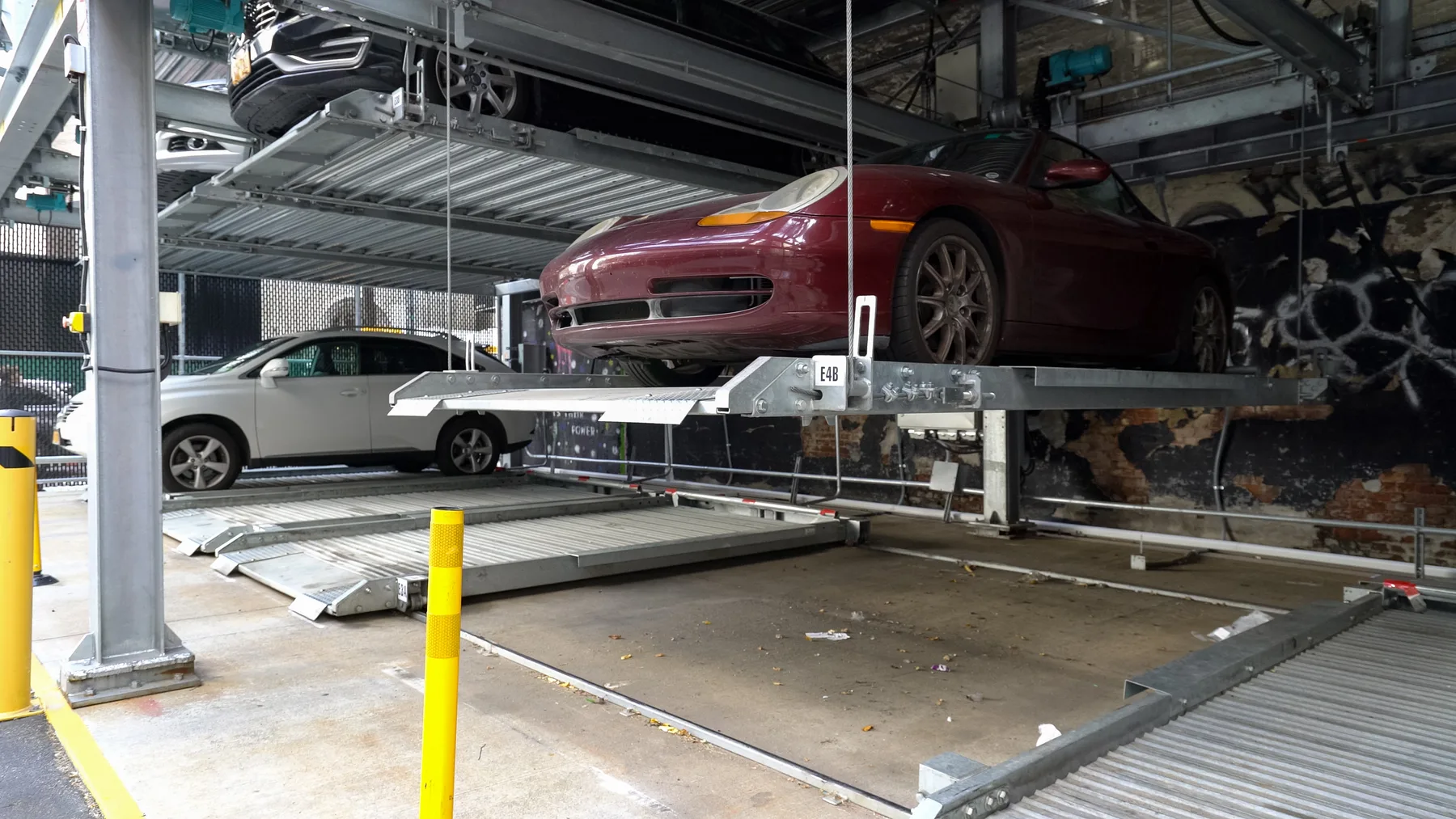

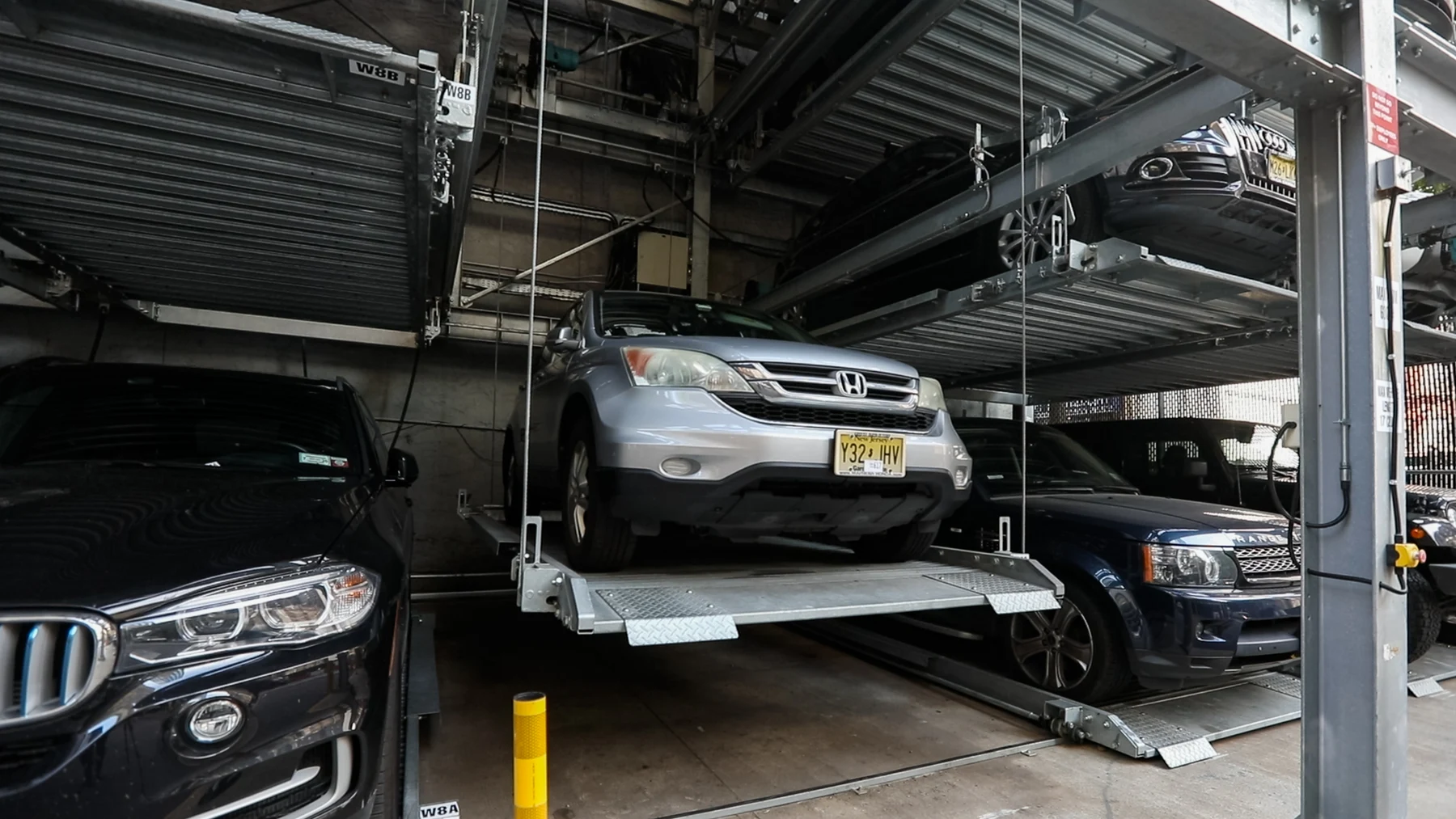

A Lift-Slide system uses a combination of vertical lift platforms and horizontal sliding carriers to position vehicles within a compact grid. Vehicles enter at ground level and are moved to an available space using a sequence of coordinated lift and slide movements — similar in principle to a sliding tile puzzle. The PLC control system manages the sequencing automatically, calculating the most efficient path to retrieve any given vehicle.
Because no ramps or driving lanes are required within the stack, a Lift-Slide system stores far more vehicles per square foot than a conventional parking structure. The only ground-level requirement is a single entry/exit bay per module.
What does “4-High” mean in a Lift-Slide configuration?

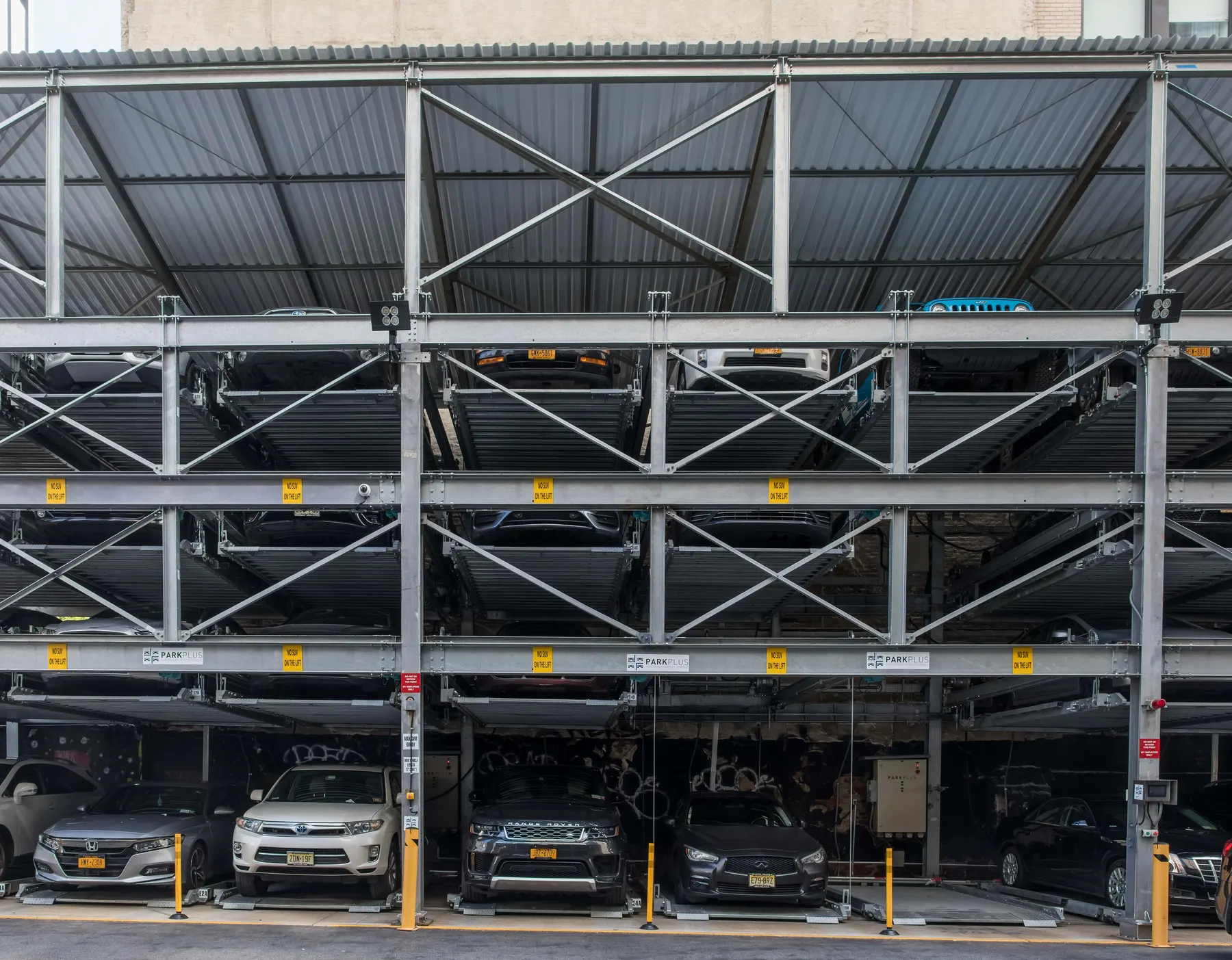

4-High refers to the number of vertical levels in the system. Each vehicle position is stacked four levels high, with one empty carrier space at any given time that allows the puzzle movement to operate. A 4-High configuration requires sufficient building or site clearance to accommodate four stacked vehicle platforms plus the system’s mechanical overhead. It is one of the taller Lift-Slide configurations and delivers the highest capacity per unit of ground footprint.
Is a Lift-Slide system suitable for an open-air or valet parking operation?
Yes. Lift-Slide systems can be configured for open-air installations, as demonstrated at 11 W 28th Street in Manhattan, where the system operates in an outdoor valet lot environment. The mechanical components are designed for exposure to ambient conditions, and valet operation is a natural fit because attendants manage vehicle entry and retrieval rather than end-users interacting with the system directly.
For open-air installations, site-specific weatherproofing and electrical supply considerations are addressed in the engineering phase. ParkPlus has completed numerous valet-operated and open-air Lift-Slide installations across a range of climates.
How long does it take to retrieve a vehicle from a Lift-Slide system?
Retrieval times vary based on the vehicle’s position within the grid and how many other movements are queued ahead of it. In a typical operating scenario, a vehicle can be retrieved in under two minutes from the time the request is entered into the control system. Multi-module configurations like the two-module setup at 11 W 28th Street allow simultaneous retrievals from separate modules, which helps maintain throughput during busy periods without one retrieval blocking another.
What are the space requirements for a Lift-Slide installation?
The primary requirements are the ground-level module footprint, sufficient clear height for the chosen level configuration, and a single entry/exit bay at grade for each module. Because Lift-Slide systems eliminate internal driving lanes and ramps, the usable footprint is highly efficient — typically 40 to 60 percent smaller than a conventional parking structure delivering the same capacity. Site geometry, ceiling or overhead clearance, and access logistics are evaluated in ParkPlus’s pre-installation assessment.
