TP500 Triple Stacker
The TP500 is a triple stacker parking lift — a hydraulic 4-post, 3-level system that triples parking capacity. It raises and locks two platforms, allowing a third vehicle to park at grade.
Triple your parking capacity

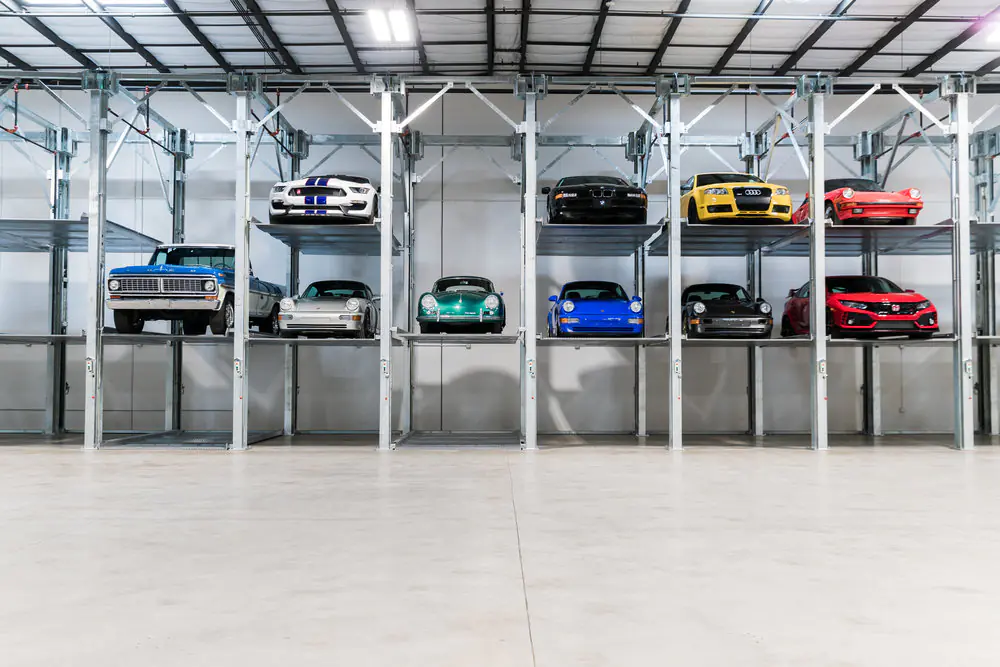

The ParkPlus TP500 is a triple stacker parking lift — a hydraulic 4-post, 3-level vehicle lift designed to triple parking density. Two independent platforms raise and lock vehicles above grade, allowing a third vehicle to park at ground level, turning one parking space into three.
Available as single units or in arrays with shared common legs for maximum density. Units can be arranged on either side of a drive aisle in single or tandem configurations. A queuing space for at least 2 vehicles is required for shuffling operations.
The TP500 accommodates standard passenger vehicles and SUVs, with custom solutions available for vans, RVs, and boats. Designed for both indoor and outdoor installation in attended/valet configurations.
Push-button control. Smooth, reliable operation with independent platform movement.
Safety hook locking with secondary anti-fall protection holds full vehicle weight on every platform.
Heavy-duty 4-post frame supports three levels of vehicles. Galvanized, commercial-grade construction.
Single units or tandem arrays. Custom solutions for vans, RVs, and boats. Indoor and outdoor.
Built to perform
Every TP500 triple stacker parking lift is manufactured in-house with galvanized, commercial-grade materials and premium hydraulic cylinders. Custom width configurations available.
| Load per Platform | 6,000 lbs |
| Weight of Unit | ± 9,000 lbs |
| Platform Length | 15'-0" |
| Length incl. Overhang | 16'-6" to 18'-0" |
| Width of Unit | 8'-6" to 8'-10" |
| Height of Unit | 21'-11" to 25'-7" |
| Operation | Hydraulic |
| Control | Push Button |
| Suitable For | Passenger Vehicles, SUVs, Vans, RVs & Boats |
| Operating Temp. | 20°F to 120°F |
| Warranty | 12 Months Standard |
| Lifespan | Indoor 7,500 · Outdoor 5,000 cycles |
Custom width available. Structural loading provided per project.
Clearance Heights
| Configuration | Min. Height |
|---|---|
| C / C / C | 22'-6" |
| S / S / S | 25'-0" |
| S / S / S (LA City) | 27'-0" |
C = Compact/Sedan, S = Standard/SUV
Width Options
| Model | Width |
|---|---|
| W01 | 8'-6" |
| W02 (LA City) | 8'-10" |
| W03 | Custom |
Talk to our team about how the TP500 fits your project.
Get a consultationWhere the TP500 works
The TP500 triple stacker parking lift delivers high-density parking for projects that need to triple capacity without expanding footprint. Installed across the United States in attended/valet configurations.
Multi-Family Residential
Triple parking capacity in apartment buildings and condominiums without expanding building footprint.
Commercial Buildings
Offices, mixed-use developments, and commercial properties where maximum vertical stacking is needed.
Surface Lots
Transform existing surface lots into high-capacity parking. Indoor and outdoor for commercial operations.
Low & High Rise
Adaptable to both low-rise and high-rise parking structures. Heights from 21'-11" to 25'-7" accommodate various ceiling clearances.
Indoor & Outdoor
Designed for both enclosed facilities and open-air installations. Operates in temperatures between 20°F and 120°F.
Custom Vehicle Solutions
Custom configurations available for vans, RVs, and boats, extending the TP500 beyond standard passenger vehicles.

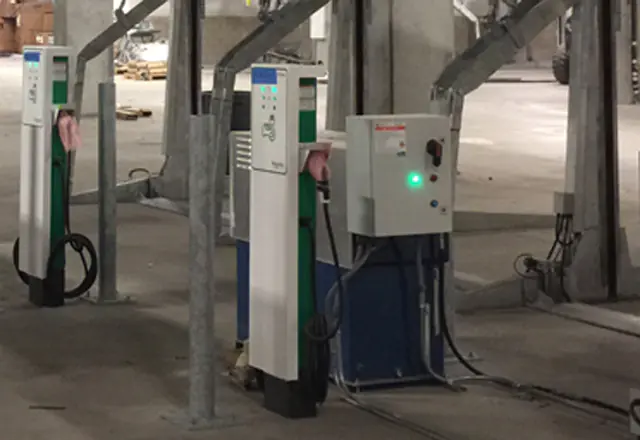

One power pack, up to 12 units
The HPS-3P15 hydraulic power system scales from single-unit installations to multi-unit tandem arrays. One disconnect required per HPS.
15 HP / 48 FLA
Disconnect: 3 PH 208-230V / 60 Amp
All control wiring is a Class 2 Circuit 24V.
Certified across America
The TP500 meets the most demanding building codes in the United States, with certifications in the country's largest and most regulated markets.
Safety Hook Locking
Safety hook locking system holds the full weight of the vehicle on each platform in the locked position. Can be equipped with individual keyed controller for extra safety.
Secondary Anti-Fall
Independent secondary anti-fall safety system provides redundant protection on every platform level.
Fire Protection
In most metropolitan areas, car stackers are reviewed as similar to high-piled storage and non-building structures. Sprinkler requirements vary by municipality and installation type.
Warranty & Service
12-month standard manufacturer's warranty on new equipment. Service contracts available after warranty period. Rental options may include service and maintenance for full term.
Certifications
- MEA/OTCR Certified — City of New York
- LAETL Approved — City of Los Angeles (LARR #930532)
- California Seismic Code Compliant
- Miami-Dade County Compliant
- Approved in multiple additional US cities
Construction
- In-house design, manufacturing, installation & service
- 4-post heavy-duty frame construction
- Premium quality hydraulic cylinders
- Galvanized, commercial-grade construction
- Seismic compliant design
What's included
Every TP500 ships as a complete assembly ready for field installation.
- 1 4-Post Frame Assembly
- 2 Hydraulic Cylinders
- 3 Platform Assemblies (2)
- 4 Safety Hook Locking System
- 5 Secondary Anti-Fall System
- 6 Hydraulic Power System
- 7 Seismic Assembly
- 8 Guide Rail Assembly
- 9 Push Button Controls
See what you save
2024 national median $29,900 per space (WGI, drawing from the AIA Architecture Billings Index and hundreds of completed projects). Adjust for your market.
Industry range $400 to $600 per space per year (NAIOP). Adjust for your market.
Construction cost benchmark based on the national median per space (WGI Annual Parking Structure Cost Outlook, drawing from the AIA Architecture Billings Index and hundreds of completed projects nationwide). Operational cost benchmark based on industry average for structured parking (NAIOP). Figures are estimates for comparison purposes. Actual project costs vary by site conditions, configuration, and installation requirements. Contact us for a project-specific quote.
Common questions about triple stacker parking lifts
What is the TP500 Triple Stacker?
Can the TP500 be installed outdoors?
What vehicles fit on the TP500?
How many units can run from one power pack?
What approvals does the TP500 have?
What is the TP500's lifespan?
Ready to triple your parking?
Every TP500 triple stacker parking lift installation is custom to the site. Talk to our team about your project requirements, dimensions, and configuration options.
