DP003 Double Stacker

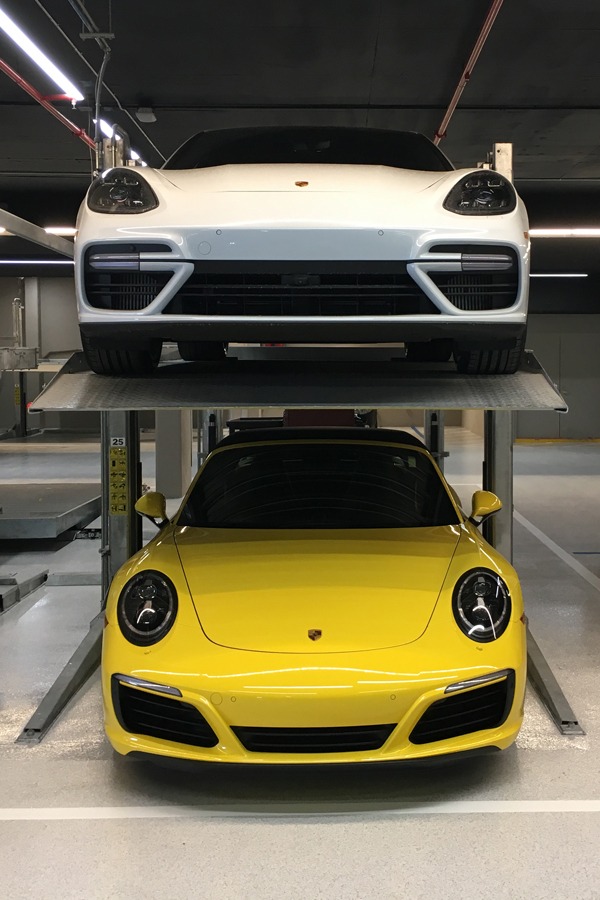

The DP003 Double Stacker parking lift is a hydraulic 2-post, 2-level cantilevered system that doubles parking capacity. It raises and locks a platform in place so that a second vehicle can be parked at grade.
Double your parking capacity
The ParkPlus DP003 Double Stacker is the leading double stacker parking lift on the market. A hydraulic 2-post system with cantilevered platforms, the DP003 lifts one vehicle above another — turning every single parking space into two.
Each double stacker parking lift comes pre-welded and is assembled in the field. Units can be installed as single stackers or in arrays with shared common legs for maximum density. Designed for mounting on grade, concrete, or asphalt with an approved foundation system.
Platform height is field adjustable in 1½-inch increments, accommodating everything from compact sedans to full-size SUVs. The DP003 is designed for both indoor and outdoor installation in attended/valet and self-park applications.
Push-button pendant control. Smooth, reliable operation with minimal moving parts.
Double suspension safety locking system holds full vehicle weight in locked position.
Minimal moving parts, galvanized commercial-grade construction, premium hydraulic cylinders.
Single units or tandem arrays. Custom heights and widths. Indoor and outdoor installations.
Built to perform
Every DP003 is manufactured in-house with galvanized, commercial-grade materials and premium hydraulic cylinders. Custom height and width configurations available.
| Load per Platform | 6,000 lbs |
| Weight of Unit | ± 3,050 lbs |
| Platform Length | 13′-6″ |
| Length incl. Overhang | 16′-6″ |
| Width of Unit | 7′-11″ to 9′-0″ |
| Height of Unit | 9′-6″ to 9′-10″ |
| Operation | Hydraulic |
| Control | Push Button Pendant |
| Suitable For | Passenger Vehicles & SUVs |
| Operating Temp. | 20°F to 120°F |
| Warranty | 12 Months Standard |
| Lifespan | Indoor 7,500 · Outdoor 5,000 cycles |
Custom height and width available. Structural loading provided per project.
Clearance Heights
| Configuration | Min. Height |
|---|---|
| Compact / Compact | 10′-6″ |
| Compact / SUV | 12′-2″ |
| SUV / SUV | 14′-0″ |
| SUV / SUV (LA City) | 14′-6″ |
Width Options
| Model | Width (CL to CL) |
|---|---|
| W01 | 7′-11″ |
| W02 | 8′-3″ |
| W03 | 8′-6″ |
| W04 | 9′-0″ |
| W05 | Custom |
Width = center of leg to center of leg
Talk to our team about how the DP003 fits your project.
Get a consultationWhere the DP003 works

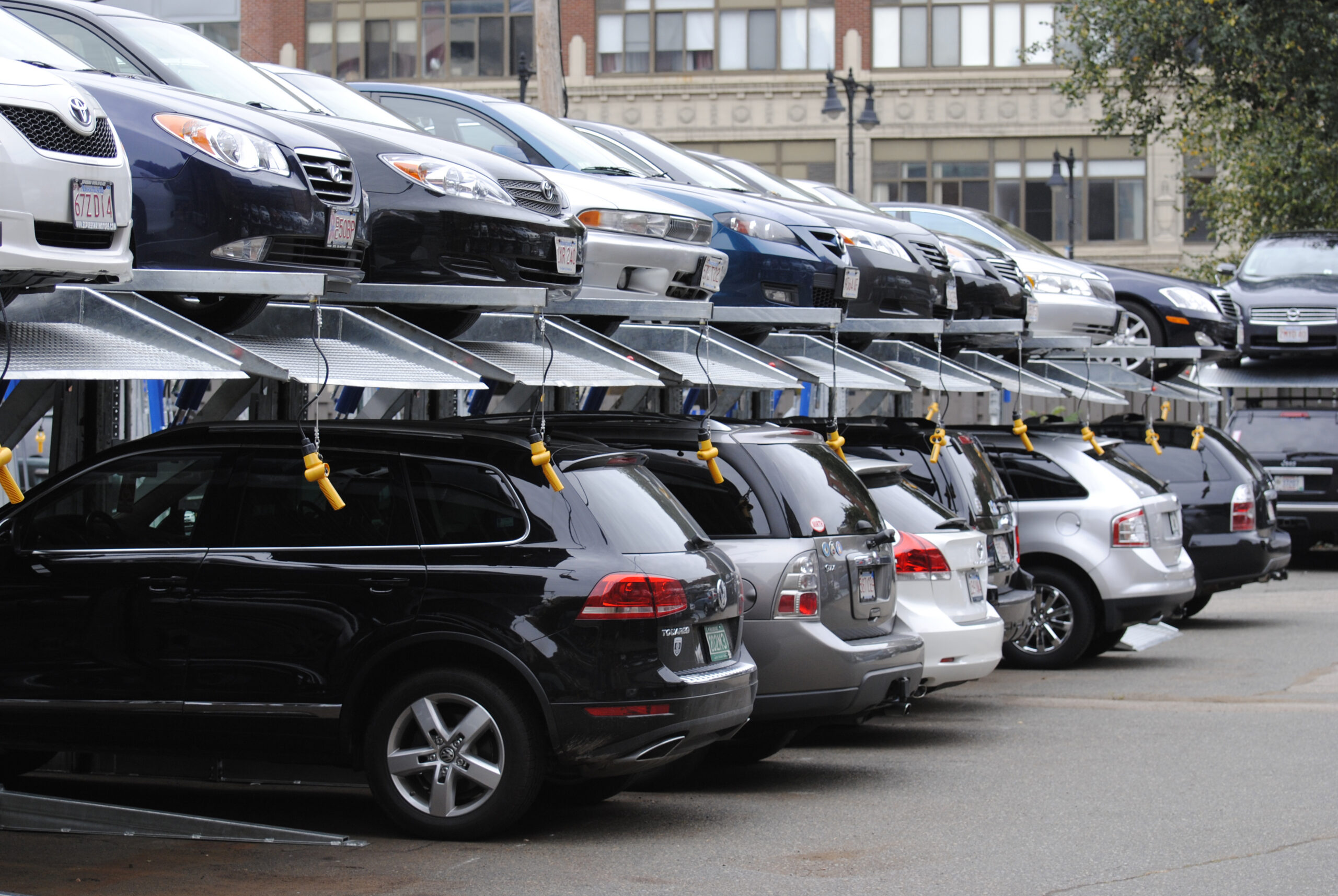

The DP003 serves the broadest range of applications of any ParkPlus product. Installed across the United States in attended/valet and self-park configurations.
Commercial Buildings
Offices, mixed-use developments, and commercial properties where capacity needs to increase without expanding footprint.
Residential Buildings
Single-family and multifamily residential. From private garages to large-scale apartment parking structures.
Auto Dealerships
Double or triple inventory storage. Store more vehicles in the same square footage — increasing revenue per square foot.
Hotels & Hospitality
Expand guest parking without costly garage construction. Valet-operated systems for seamless guest experience.
Hospitals & Institutions
Increase capacity without expanding physical footprint — critical for space-constrained medical campuses.
Surface Lots
Transform existing surface lots into high-capacity parking. Indoor and outdoor for commercial operations.
DP003 Double Stacker — Fountainview Project Installation
One power pack, up to 30 units
Three hydraulic power system options scale from single-unit installations to large tandem arrays. One disconnect required per HPS.
HPS-1P10 and EV charging station
2-3 HP / 18 FLA
10 HP / 40 FLA
Disconnect: 1 PH 208-230V / 60 Amp
10 HP / 28.4 FLA
Disconnect: 3 PH 208-230V / 40 Amp
All control wiring is a Class 2 Circuit 24V.
Certified across America
The DP003 meets the most demanding building codes in the United States, with certifications in the country’s largest and most regulated markets.
Posi-Lock Safety System
Double suspension safety locking system holds the full weight of the vehicle on the platform in the locked position. Can be equipped with individual keyed controller for extra safety.
Self-Park Capability
Self-attended applications may include additional sensors to detect objects located under the platform or entering the area below.
Fire Protection
In most metropolitan areas, car stackers are reviewed as similar to high-piled storage and non-building structures. Sprinkler requirements vary by municipality and installation type.
Warranty & Service
12-month standard manufacturer’s warranty on new equipment. Service contracts available after warranty period. Rental options may include service and maintenance for full term.
Certifications
- MEA/OTCR Certified — City of New York
- LAETL Approved — City of Los Angeles (LARR #930501)
- California Seismic Code Compliant
- Miami-Dade County Compliant
- Approved in multiple additional US cities
Construction
- In-house design, manufacturing, installation & service
- Minimal moving parts — reduced maintenance
- Premium quality hydraulic cylinders
- Galvanized, commercial-grade construction
- Seismic beam assembly included
What’s included
Every DP003 ships as a complete, pre-welded assembly ready for field installation.
- 1 Cradle Frame Assembly
- 2 Hydraulic Cylinder
- 3 Parallel Arm Assembly
- 4 Adjustable Height Assembly
- 5 Safety Locks Assembly
- 6 End Leg Assembly
- 7 Seismic Beam Assembly
- 8 Platform Assembly
- 9 Push Button Controls
See what you save
2024 national median $29,900 per space (WGI, drawing from the AIA Architecture Billings Index and hundreds of completed projects). Adjust for your market.
Industry range $400 to $600 per space per year (NAIOP). Adjust for your market.
Construction cost benchmark based on the national median per space (WGI Annual Parking Structure Cost Outlook, drawing from the AIA Architecture Billings Index and hundreds of completed projects nationwide). Operational cost benchmark based on industry average for structured parking (NAIOP). Figures are estimates for comparison purposes. Actual project costs vary by site conditions, configuration, and installation requirements. Contact us for a project-specific quote.
Common questions about double stacker parking lifts
What is the DP003 Double Stacker?
Can the DP003 be installed outdoors?
What vehicles fit on the DP003?
How many units can run from one power pack?
What approvals does the DP003 have?
What is the DP003’s lifespan?
Ready to double your parking?
Every DP003 double stacker parking lift installation is custom to the site. Talk to our team about your project requirements, dimensions, and configuration options.
